MIL-W-22759
MIL-W-22759/13 MIL線纜
TAGS:
應用與描述：
單芯美軍標 MIL-W-22759/13 絕緣為擠出氟化乙烯-丙烯共聚物(FEP)的線纜用于軍事及航空航天等領域。

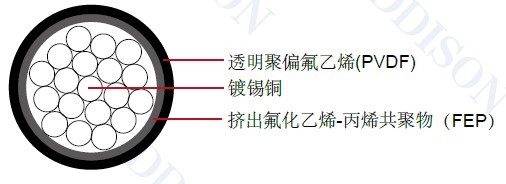

結構：
導體:鍍錫銅
絕緣:擠出氟化乙烯-丙烯共聚物(FEP)
護套:透明聚偏氟乙烯(PVDF)
絕緣材料厚度:11 mil ( 0.30 mm)
特性：
額定溫度:135°C
額定電壓:600 volts
SAE AS22759/13
顏色代碼:MIL-STD-681
尺寸和重量：
| AWG | 導體絞合 | 導體直徑 ( *小) | 導體直徑 (*大) | 成纜外徑 (*小) | 成纜外徑 ( *大) |
重量 LBS/MFT | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| IN | MM | IN | MM | IN | MM | IN | MM | |||
| 24 | 19/36 | 0.023 | 0.584 | 0.025 | 0.635 | 0.047 | 1.194 | 0.051 | 1.295 | 2.9 |
| 22 | 19/34 | 0.029 | 0.724 | 0.030 | 0.772 | 0.048 | 1.219 | 0.054 | 1.372 | 3.9 |
| 20 | 19/32 | 0.037 | 0.927 | 0.038 | 0.975 | 0.058 | 1.473 | 0.064 | 1.626 | 5.5 |
| 18 | 19/30 | 0.045 | 1.130 | 0.048 | 1.229 | 0.068 | 1.727 | 0.074 | 1.880 | 8.0 |
| 16 | 19/29 | 0.052 | 1.308 | 0.054 | 1.382 | 0.073 | 1.854 | 0.081 | 2.057 | 10.1 |
| 14 | 19/27 | 0.065 | 1.638 | 0.068 | 1.737 | 0.087 | 2.210 | 0.095 | 2.413 | 15.5 |
| 12 | 37/28 | 0.086 | 2.172 | 0.089 | 2.261 | 0.107 | 2.718 | 0.115 | 2.921 | 23.0 |
| 10 | 37/26 | 0.106 | 2.692 | 0.112 | 2.845 | 0.134 | 3.404 | 0.142 | 3.607 | 35.7 |
| 8 | 133/28 | 1.580 | 40.132 | 0.169 | 4.293 | 0.190 | 4.826 | 0.202 | 5.131 | 62.8 |
| 6 | 133/27 | 1.980 | 50.292 | 0.212 | 5.385 | 0.239 | 6.071 | 0.255 | 6.477 | 99.3 |
| 4 | 133/25 | 0.250 | 6.350 | 0.268 | 6.807 | 0.292 | 7.417 | 0.308 | 7.823 | 153.0 |
| 2 | 665/30 | 0.320 | 8.128 | 0.340 | 8.636 | 0.362 | 9.195 | 0.386 | 9.804 | 247.0 |
| 1 | 817/30 | 0.360 | 9.144 | 0.380 | 9.652 | 0.398 | 10.109 | 0.426 | 10.82 | 311.0 |
| 1/0 | 1045/30 | 0.405 | 10.287 | 0.425 | 10.795 | 0.442 | 11.227 | 0.474 | 12.04 | 387.0 |
